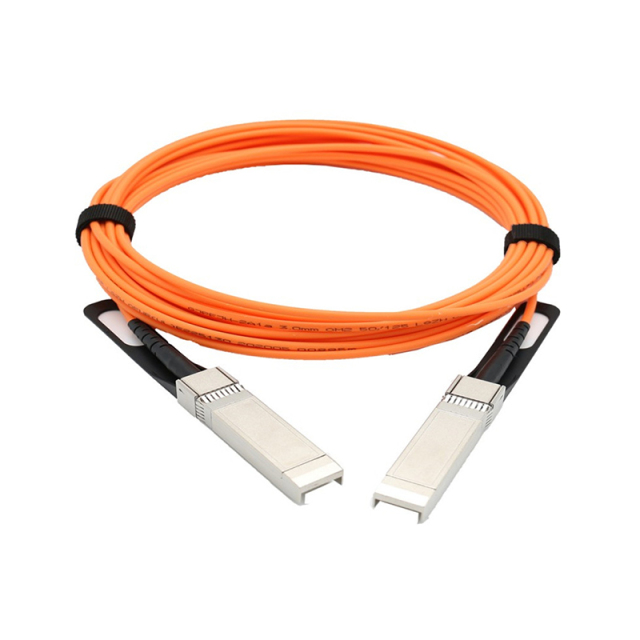

10G SFP+ AOC is a high data rate parallel active optical cable. It uses high reliability 850nm VCSEL technology to overcome the bandwidth limitation of traditional copper cables. The transmission distance of OM3 multimode fiber can reach 150m.
● Product origin: China
● Delivery time: 7 -10 workdays
We are manufacturer that could support you good quality with aggressive price. Believe that we are the best choice for you from many traders and resellers.
Accepted OEM/ ODM
Welcome to send us any of your questions and inquiries, we are more than pleasure to send you more information.
10G SFP active optical cable (AOC) components are supported by active circuits, which have a longer transmission distance than passive or active SFP+ copper cables. SFP+AOC cable provides a high-performance small form-factor pluggable (SFP+) interface, which is a cost-effective solution for data centers, storage and short-range data applications.
10G SFP active optical cable providing improved signal integrity, longer distances, superior electromagnetic immunity and better bit error rate performance.
• 10Gb/s serial optical interface
• 850nm high-speed VCSEL and PIN receiver
• Support 10 Gb/s transmission distance up to 150 meters with OM2/OM3 fiber
• Operating case temperature 0℃ to +70℃
• 3.3V power supply voltage
• Compliant with SFP+ MSA and SFF-8432 standard
• Supports serial ID functionality through EEPROM
• Support digital diagnostics monitoring for module temperature, Vcc, Rx input power, Tx_Disable and Rx_LOS
• Typical power consumption 200mW
• RoHS compliance
• 4G and 8G Fiber Channel applications
• 1x InfiniBand QDR, DDR, SDR
• High-performance computing cluster, Data center
• Server, switch, storage and host card adapters
• 10 Gigabit Ethernet
| Parameter | Value | Units |
| Diameter | 3 | mm |
| Minimum bend radius | 30 | mm |
| Length tolerance | Length < 1 m: +5 /-0 | cm |
| 1 m ≤length ≤ 4.5 m: +15 / -0 | cm | |
| 5 m ≤length ≤ 14.5 m: +30 / -0 | cm | |
| Length≥15.0 m +2% / -0 | m | |
| Cable color | Aqua(OM3);Orange(OM2) | |
